What is a bottle filling station?

It fills a water bottle quickly and cleanly from a building water line, which cuts down on disposable plastic bottles. The Elkay ezH2O stations here come in floor standing, in-wall and surface mount styles, refrigerated or non-refrigerated, and filtered or non-filtered. There are also outdoor wall mount models with a drinking fountain, and a non-electric mechanical model for spots without wiring.

Do the stations need filters?

Filtered stations use the Elkay WaterSentry Plus replacement filter, which provides 3,000 gallons per cartridge. Replacement is recommended every 3,000 gallons or 12 months, whichever comes first.

Are there Sqwincher bundles?

Yes. The Elkay in-wall station and the filtered refrigerated station come bundled with Sqwincher, so a site gets cold, filtered water and electrolyte drink mix together.

What water options are there?

Bottled spring and purified water from Crystal Geyser, Nestle Pure Life, Niagara and Roxane, boxed and canned water from Aqualy and RAIN, Open Water electrolyte water, custom branded water with a company logo, boxed emergency water with a 5 or 10 year shelf life, and Elkay bottle filling stations for sites with a water line.

How is bulk water sold?

Mostly by the pallet, for example 84 case pallets of 16.9 oz Crystal Geyser bottles at 24 bottles per case, and Nestle Pure Life pallets of 78 cases at 24 bottles or 48 cases at 40 bottles. Some brands also ship by the full truckload.

Elkay ezH2O In-Wall Bottle Filling Station Filtered Non-Refrigerated

Name: Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated
Brand: Elkay Water Solutions
SKU: LZWSMDK
Price: 1690.08 USD
Availability: InStock
Rating: 4.8 (1 reviews)

Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated

Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated - 1

Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated - 2

Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated - 3

Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated - 4

$1690.08 $2315.1827% Off View All Coolers-Cups-Gear View All Sqwincher 20 oz Qwikstix

Top Features ADA Compliant, Touchless, Senor Activated with Visual Filter Monitor, Ambient Water Temperature
For Installation Services Available, please contact our customer service team.
In Stock - Buy Now Need a Quote? Quote option is available at checkout. Frequently Bought Together Set a quantity below and it will be added to your cart together with this product. Liquid IV Hydration Multiplier Variety Bundle - 400 Ct w/Qwik Dispense Bag LIQUID-IV300 Add Now For Your Exclusive Bundle Discount & Save $10.00 $493.15 $483.15 Sqwincher Zero Individual Powder Sticks Bundle -1500 Sticks for 25 Employees WHP-S-BUNDLE-1500 Add Now For Your Exclusive Bundle Discount & Save $5.00 $615.49 $610.49 Gatorade Zero Single Serve Sticks - 960 Stick Industrial Variety Pack w/ Qwik Dispense Bag G-ZERO-BUNDLE $815.44

Read more at our Blog

Product Details
Elkay ezH2O LZWSMDK In-Wall Bottle Filling Station - Filtered Non-Refrigerated - LZWSMDK

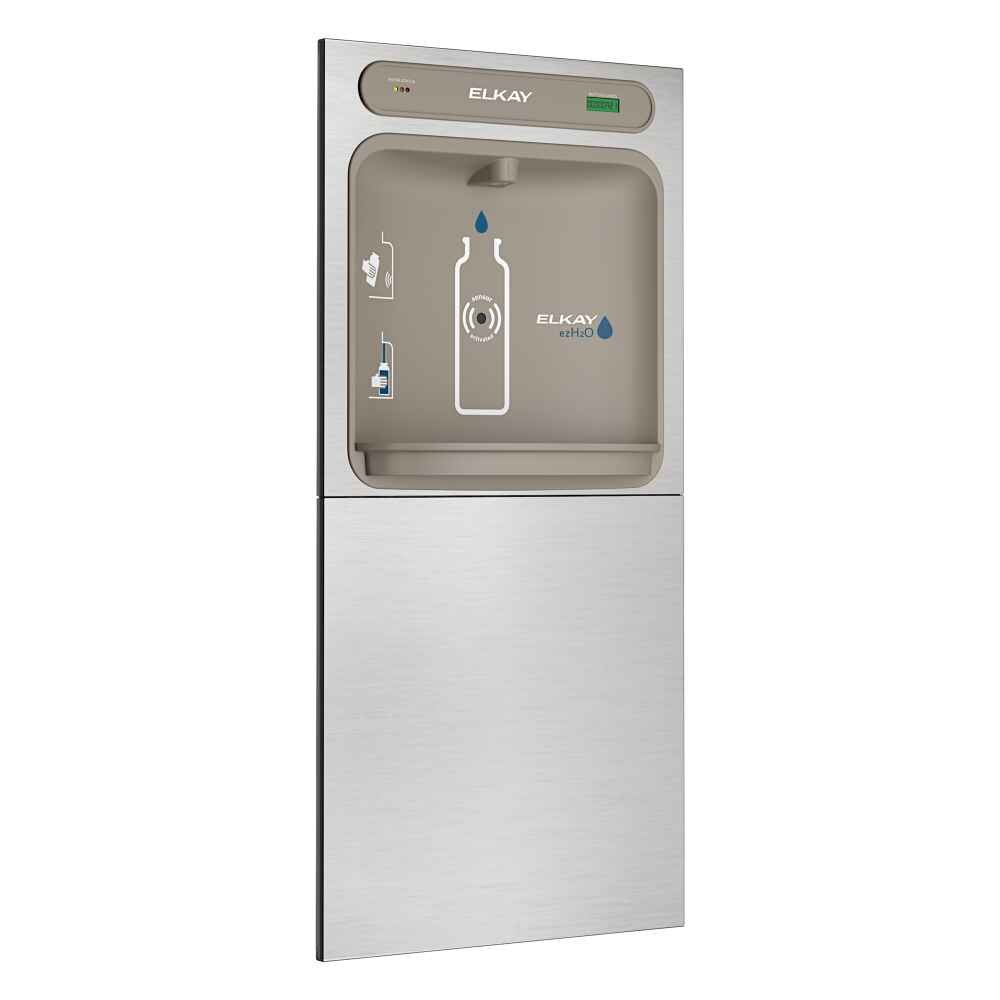

The Elkay ezH2O In-Wall Bottle Filling Station with Mounting Frame in Stainless Steel is a touchless, sensor-activated non-refrigerated filling station designed for indoor in-wall installation. Dispensing water at ambient temperature, it features a Visual Filter Monitor that alerts when filter replacement is needed. Includes the bottle filler (LZWSMDC), mounting frame (MFWS100), and standard filter (EWF3000). Ships in multiple boxes. ADA and ICC A117.1 compliant. Built in the USA.

Product Specifications:
- Model: LZWSMDK
- Finish: Stainless Steel
- Chilling Capacity: Non-refrigerated, ambient water temperature
- Activation: Electronic Bottle Filler Sensor (touchless, hands free)
- Mounting Type: In-Wall Mount (Inwall Frame/Plate), indoor use only
- Bubbler Style: No Bubbler
- Power: 115V/60Hz, 15 Rated Watts, 1 Full Load Amp
- Dimensions (L x W x H): 19-3/4" x 3-1/2" x 40-13/16"
- Approx. Shipping Weight: 36 lbs.
- Stations Served: 1
Features:
- Visual Filter Monitor with LED indicator alerts when filter change is needed
- Green Ticker displays number of 20 oz plastic bottles saved from waste
- Laminar flow provides clean fill with minimal splash
- Real Drain System eliminates standing water
- Antimicrobial silver ion agent on key plastic components helps provide clean, stain, and odor-free surfaces
- Standard filter included (EWF3000), rated at 3,000 gallons per cartridge or 1 year
Certifications and Compliance:
- ADA and ICC A117.1 compliant
- CAN/CSA C22.2 No. 120
- GreenSpec Listed
- NSF/ANSI 42, 53, 61, 372 (lead free), and 401
- UL 399 listed, cULus listed
- Built in the USA

Specifications

FAQ

Frequently Asked Questions:

What is a bottle filling station?

It fills a water bottle quickly and cleanly from a building water line, which cuts down on disposable plastic bottles. The Elkay ezH2O stations here come in floor standing, in-wall and surface mount styles, refrigerated or non-refrigerated, and filtered or non-filtered. There are also outdoor wall mount models with a drinking fountain, and a non-electric mechanical model for spots without wiring.

Do the stations need filters?

Filtered stations use the Elkay WaterSentry Plus replacement filter, which provides 3,000 gallons per cartridge. Replacement is recommended every 3,000 gallons or 12 months, whichever comes first.

Are there Sqwincher bundles?

Yes. The Elkay in-wall station and the filtered refrigerated station come bundled with Sqwincher, so a site gets cold, filtered water and electrolyte drink mix together.

What water options are there?

Bottled spring and purified water from Crystal Geyser, Nestle Pure Life, Niagara and Roxane, boxed and canned water from Aqualy and RAIN, Open Water electrolyte water, custom branded water with a company logo, boxed emergency water with a 5 or 10 year shelf life, and Elkay bottle filling stations for sites with a water line.

How is bulk water sold?

Mostly by the pallet, for example 84 case pallets of 16.9 oz Crystal Geyser bottles at 24 bottles per case, and Nestle Pure Life pallets of 78 cases at 24 bottles or 48 cases at 40 bottles. Some brands also ship by the full truckload.
